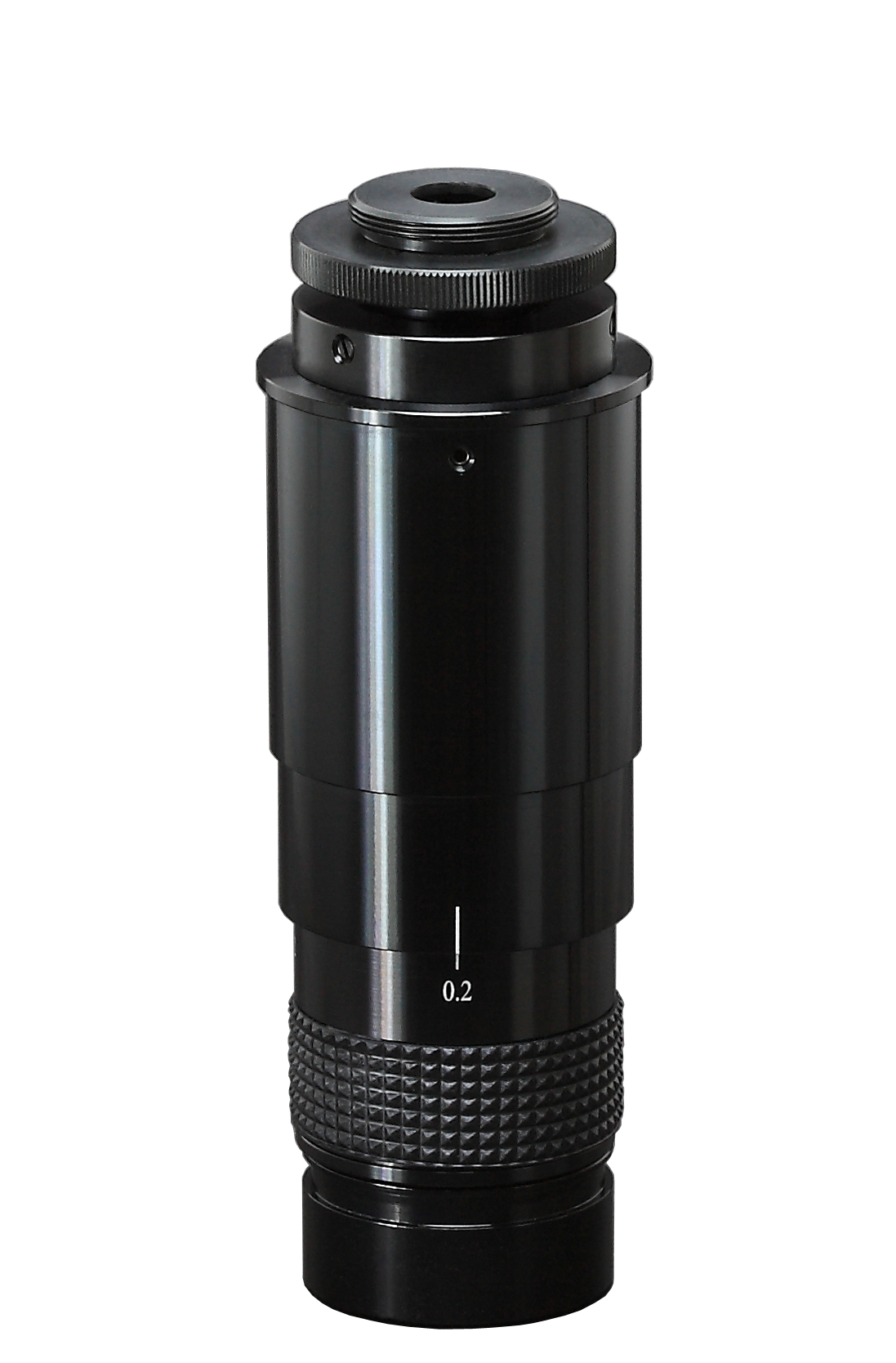

◆ Includes MZD0212, MZD0318, MZD1070, MZD0745

◆ Objective Lens continuous magnification, kinds of magnifications, can pre-set stops with detents

◆ Various main body , auxiliary illuminators , stands and CCD adapters are optional and available

◆ MZD1070C and MZD0745C contain coaxial illuminator and CS-mount & C-mount can be equipped with CCD camera

◆ Application widely in semiconductor equipments, LCD,LED manufacture, inspection and two-dimensional, three-dimensional measurement systems

MZD0212	MZD0318	MZD0745	MZD0745C	MZD0745C-A

◆ Objective Lens continuous magnification, kinds of magnifications, can pre-set stops with detent

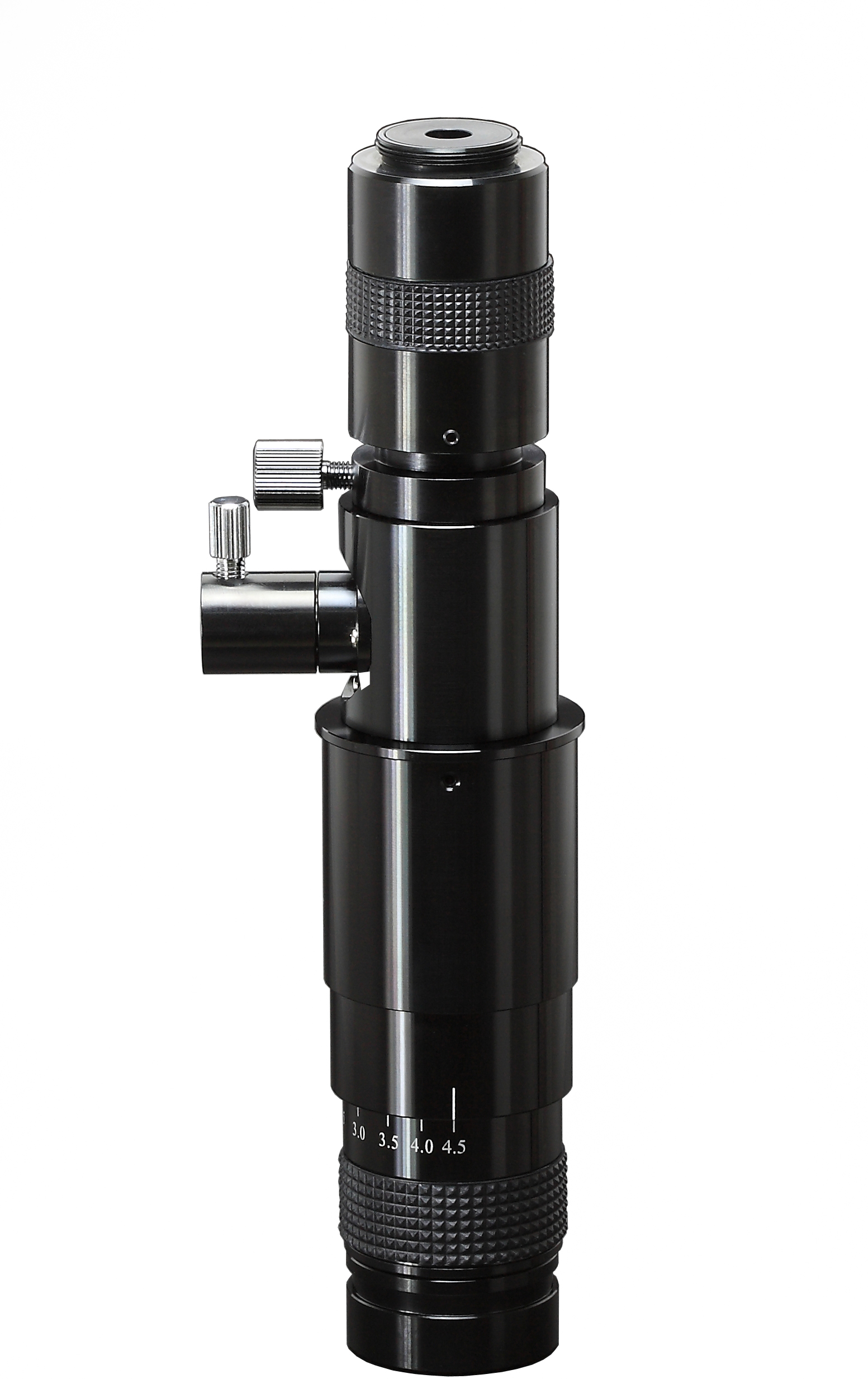

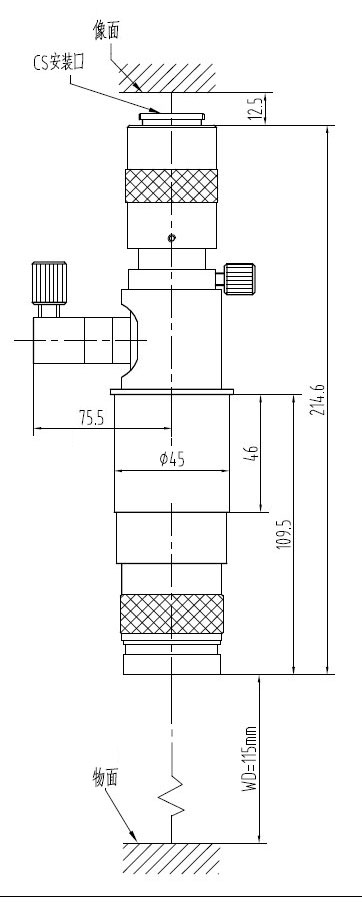

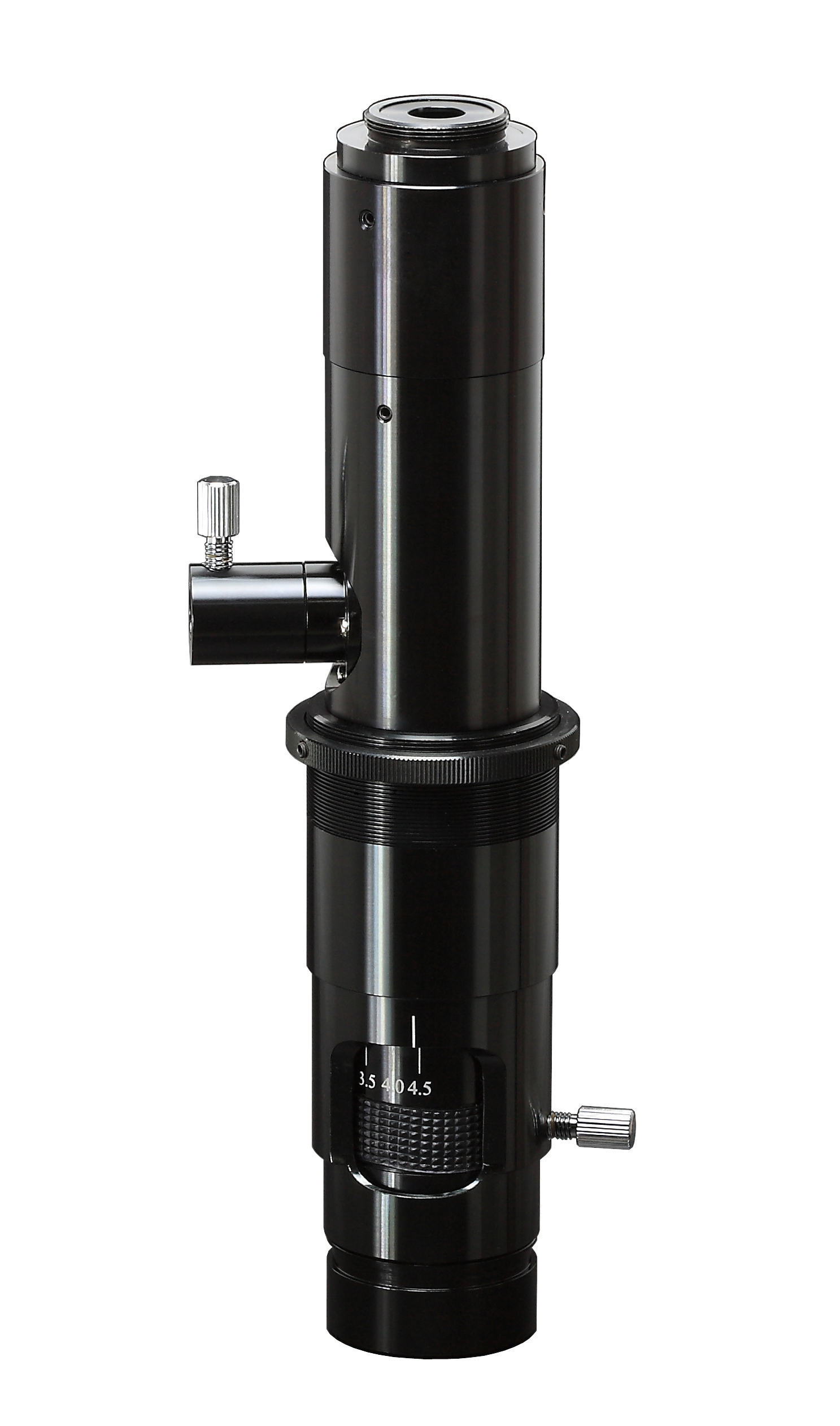

◆ MZD0745C & MZD1070C contained coaxial illuminator

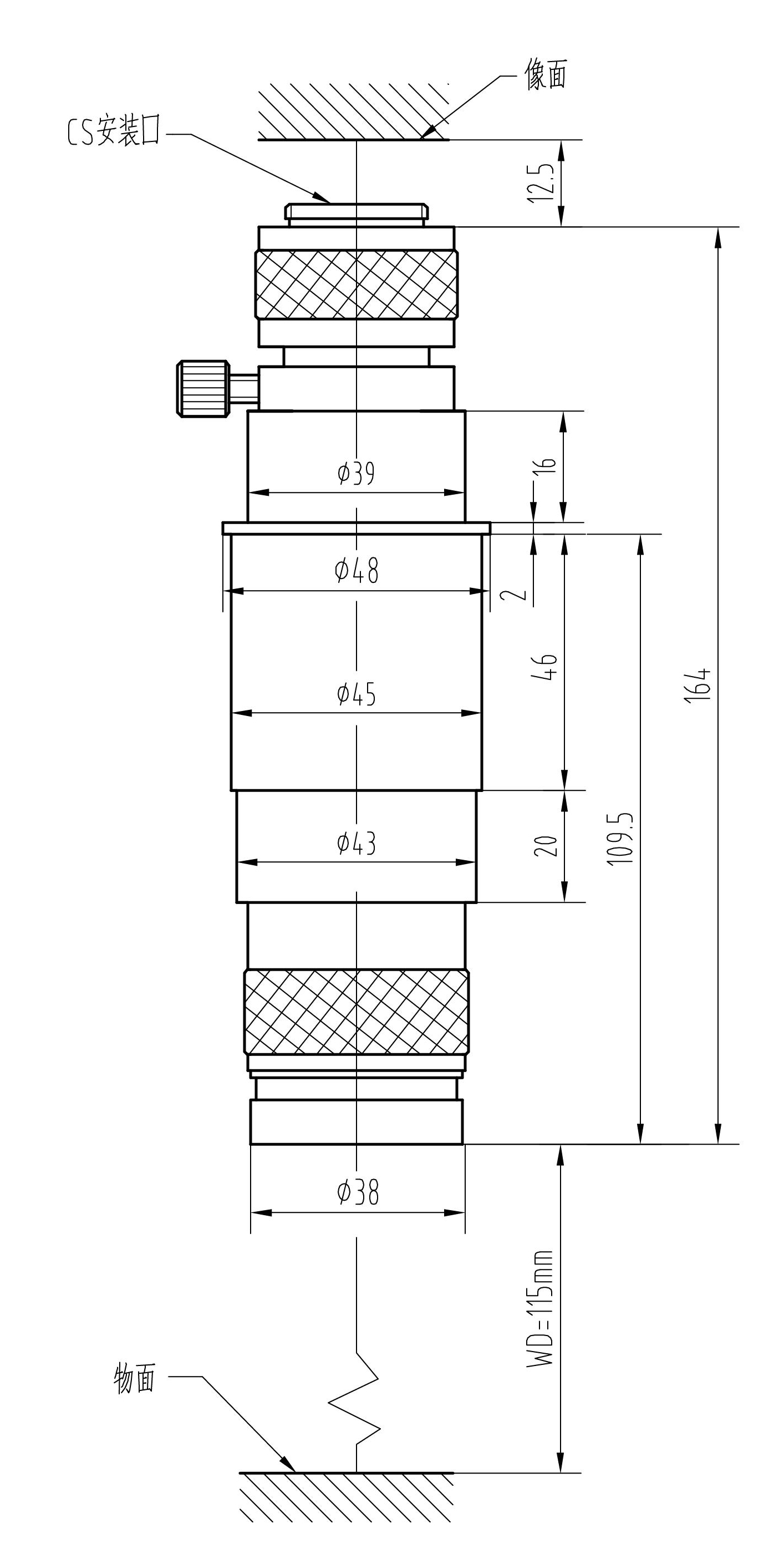

◆ Holder and Main Body match dimension is Φ45mm.

◆ Round Post diameter is Φ25mm

◆ Various main body, auxiliary illuminators and stands to be selected.(Exclude CCD)

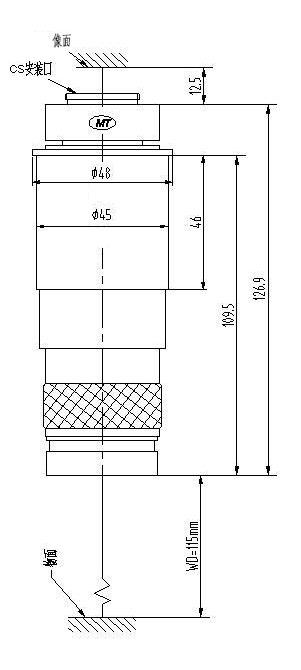

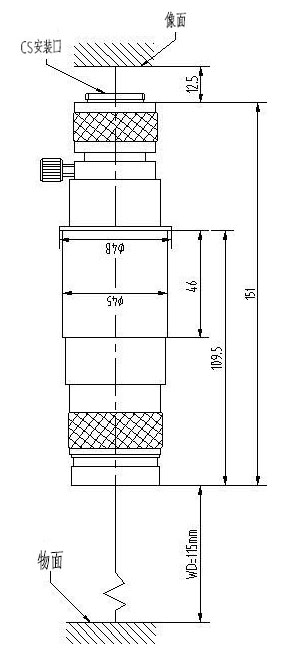

MZD0212:

Auxiliary objectives	Item	MZD0212
1X Main body	Optical Mag.	0.2X～1.2X
	FOV(mm)	18X24～3X4
	WD(mm)	115
0.5X	Optical Mag.	0.1X～0.6X
	FOV(mm)	36X48～6X8
	WD(mm)	195
0.7X	Optical Mag.	0.14X～0.84X
	FOV(mm)	25.7X34.3～4.3X5.7
	WD(mm)	145
2X	Optical Mag.	0.4X～2.4X
	FOV(mm)	9X12～1.5X2
	WD(mm)	35
Zoom body magnification range		0.2X～1.2X

Mag.	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount：1 inch 32 button
0.2X	0.024	8.3mm	14.0μm	0.90%
0.6X	0.055	1.2mm	6.1μm	0.10%
1.2X	0.071	0.47mm	4.7μm	0.60%

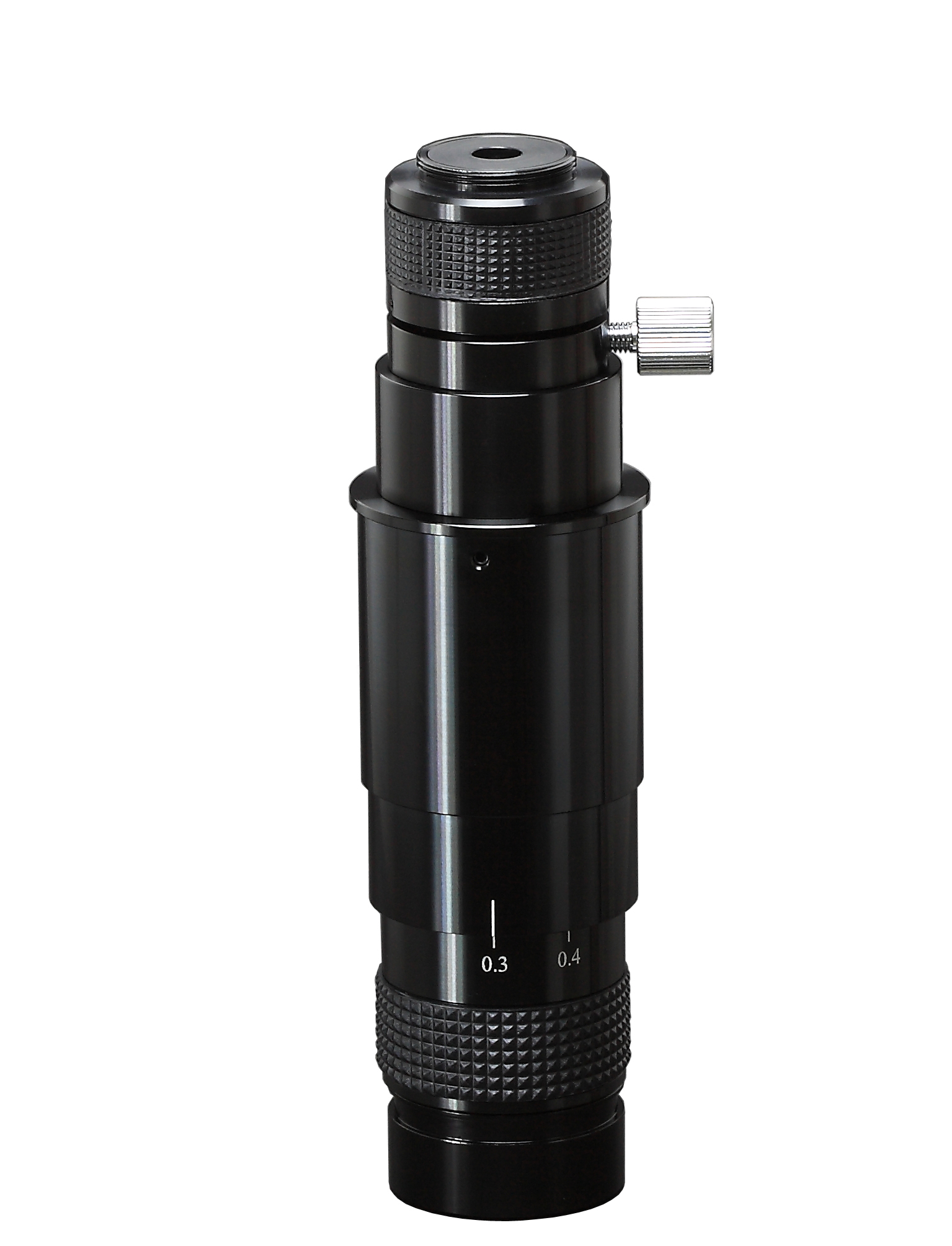

MZD0318:

Auxiliary objectives	Item	MZD0318
1X Main body	Optical Mag.	0.3X～1.8X
	FOV(mm)	12X16～2X2.7
	WD(mm)	115
0.5X	Optical Mag.	0.15X～0.9X
	FOV(mm)	24X32～4X5.3
	WD(mm)	195
0.7X	Optical Mag.	0.21X～1.26X
	FOV(mm)	17.1X22.9～2.9X3.8
	WD(mm)	145
2X	Optical Mag.	0.6X～3.6X
	FOV(mm)	6X8～1X1.3
	WD(mm)	35
Zoom body magnification range		0.3X～1.8X

Mag.	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount：1 inch 32 button
0.3X	0.023	5.8mm	14.6μm	0.12%
1.0X	0.058	0.69mm	5.8μm	0.13%
1.8X	0.071	0.31mm	4.7μm	0.01%

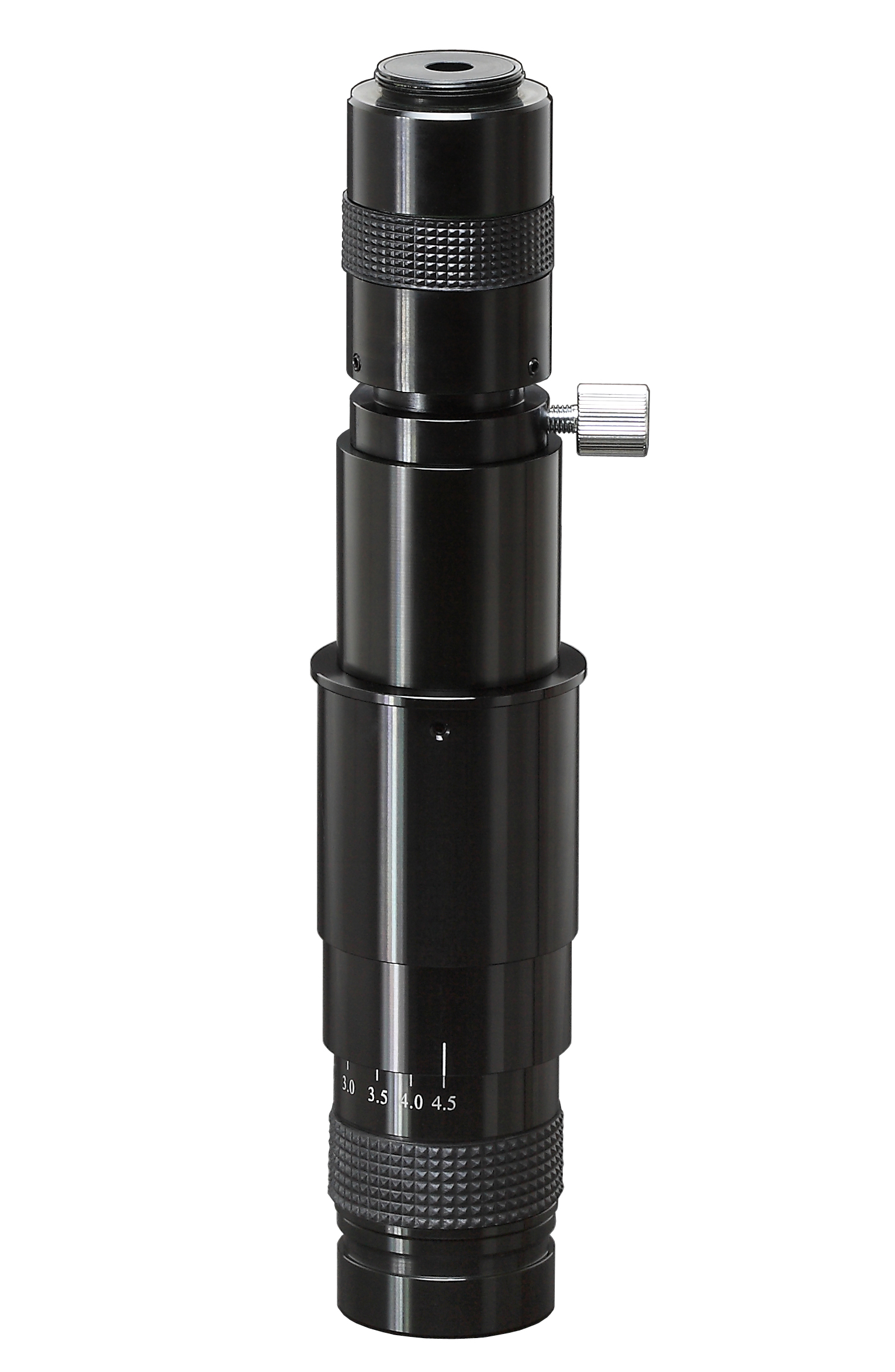

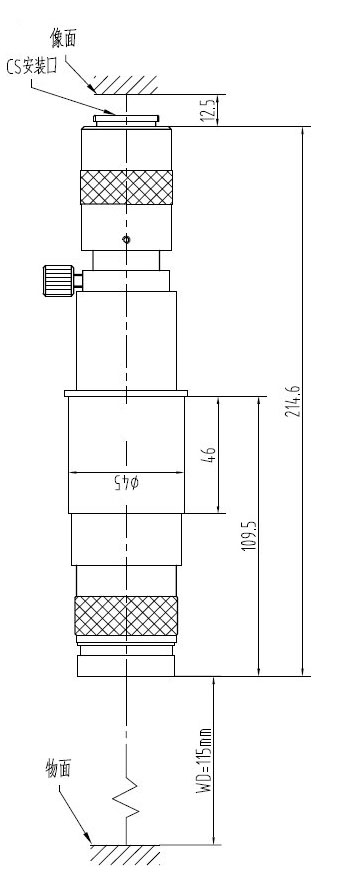

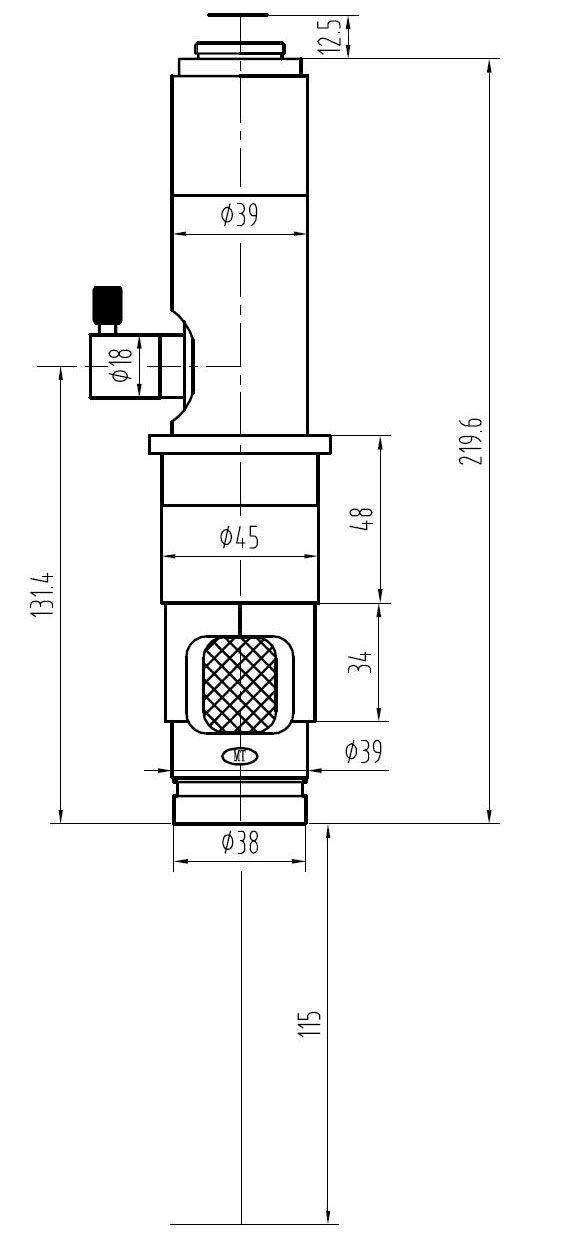

MZD0745,MZD0745C,MZD0745C-A:

Auxiliary objectives	Items	CCD adapter
		0.5X	1X
0.5X	Optical Mag.	0.175X～1.125X	0.35X～2.25X
	FOV(mm)	20.6X27.4～3.2X4.3	10.3X13.7～1.6X2.13
	WD(mm)	195
0.7X	Optical Mag.	0.245X～1.575X	0.49X～3.15X
	FOV(mm)	14.7X19.6～2.3X3	7.3X9.8～1.14X1.5
	WD(mm)	145
1X Main body	Optical Mag.	0.35X～2.25X	0.7X～4.5X
	FOV(mm)	10.3X13.7～1.6X2.13	5.14X6.9～0.8X1.1
	WD(mm)	115
2X	Optical Mag.	0.7X～4.5X	1.4X～9X
	FOV(mm)	5.14X6.9～0.8X1.1	2.6X3.4～0.4X0.5
	WD(mm)	35
Zoom body magnification range		0.7X～4.5X

Mag.	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount：1 inch 32 button
0.7X	0.023	2.5mm	14.6μm	0.07%
2X	0.052	0.39mm	6.5μm	0.11%
4.5X	0.072	0.12mm	4.7μm	0.09%

◆ Auxiliary objectives : D-W0.5,D-W0.7,D-W2.0（Objectives ass’y bottom need to be machining with outside screw thread） .

◆ Auxiliary illuminators : MLC100A,MLR25

◆ CS &C-mount universal CCD adapters: C0.5 ,C1.0

◆ Optional stand and base stage
